VIP Barrier Integration at BFH Commercial Building: Smart Access Control Solution
How Rising Tech Solutions transformed a standalone VIP entrance barrier into an intelligent, fully integrated access control system at BFH Commercial Building. By linking the VIP barrier with the main ticket barrier system using tailored master–slave logic, we delivered smarter access segregation, improved control, and a cost-effective solution without major hardware replacement.
Zulfikar Dhanse
3/29/20263 min read
Smart VIP Barrier Integration at BFH Commercial Building
In modern commercial buildings, access control is no longer just about opening and closing barriers. It is about intelligence, coordination, and ensuring that every entry point serves the right purpose.

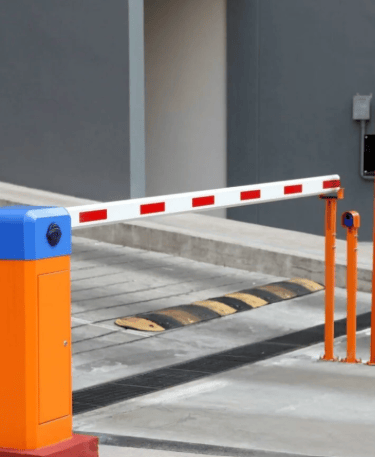

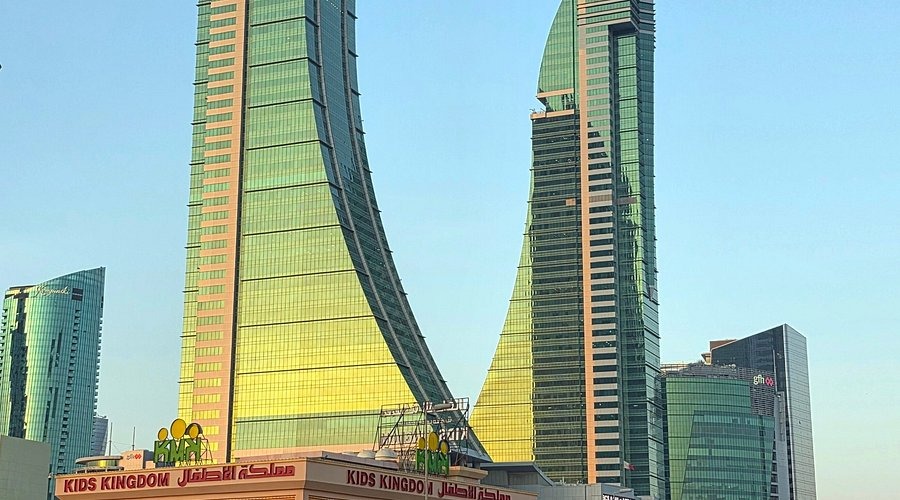

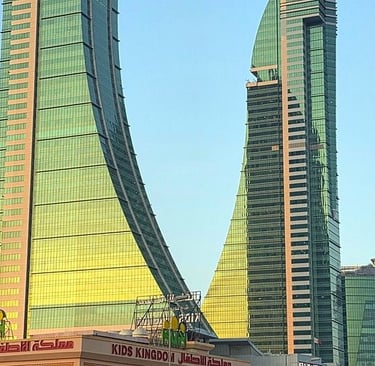

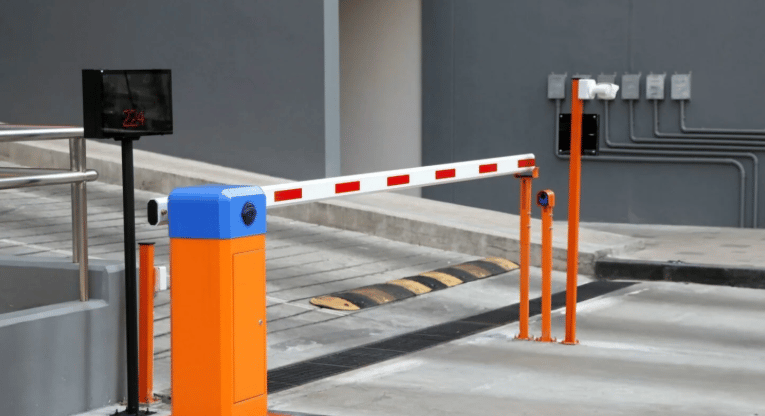

At BFH Commercial Building, a multi-tenant commercial facility with controlled entry points, the initial requirement was straightforward: install an articulated barrier system at the VIP entrance, where height limitations made a conventional straight boom barrier unsuitable. Later, the client introduced a more advanced operational requirement. Three ticket barrier systems had been installed at the main building entrance, and the VIP barrier now needed to work in coordination with them as part of a more controlled access strategy.
The challenge was clear. The client did not want the VIP barrier to function like a standard tenant access barrier. It needed to open only for authorized VIP vehicles, while maintaining a clear separation between VIP access and general tenant access. In other words, the building needed access segregation, not just access automation.
At the time, the VIP barrier was operating as a standalone system. There was no communication with the ticketing system, no centralized control logic, and no way to distinguish VIP users from regular users. While the barrier itself was functional, the wider setup lacked the intelligence required for a premium, controlled-entry environment. That created the risk of unintended access and limited the client’s ability to manage entry points with precision.
During our site assessment and system review, we identified an important opportunity: both the VIP barrier and the ticket barrier systems had available control inputs and outputs that could be used for integration. That meant the client’s objective could be achieved without replacing existing hardware. Instead of recommending an expensive overhaul, we designed a solution that made better use of the infrastructure already in place.
Our engineering team proposed a Master–Slave control solution. In this configuration, the ticket barrier control system was treated as the Master, while the VIP barrier was configured as the Slave. The logic was designed so that the VIP barrier would respond only when a specific VIP-authorized trigger condition was met. This gave the client exactly what was needed: controlled behavior, clear user differentiation, and reliable coordination between systems.
From a technical standpoint, the integration was delivered using relay outputs and dry contact signals between the ticket barrier system and the VIP barrier control panel. We programmed the control logic to ensure that only VIP-authorized signals could activate the barrier, while regular tenant access would not trigger it. We also configured signal priority and interlocks, maintained proper wiring segregation, and carried out scenario-based testing for VIP entry, tenant entry, and simultaneous triggers. The system was then fine-tuned to eliminate false triggering and ensure smooth, dependable performance under real operating conditions.
The result was a fully integrated access solution that gave BFH Commercial Building exactly what it was looking for: a VIP barrier that operates only for authorized vehicles, seamless coordination with the three ticket barrier systems, and a clear operational distinction between VIP and tenant access. Just as importantly, this was achieved without major system upgrades, making the solution both cost-effective and highly practical.
The client was highly satisfied with the outcome, particularly because the integration delivered smarter control with minimal disruption to the existing infrastructure. What had once been a simple standalone barrier became a far more intelligent and reliable access control point.
This project is a strong example of how real value in ELV and access control engineering often comes not from replacing systems, but from integrating them intelligently. At Rising Tech Solutions, this is exactly how we approach modern security environments: by understanding the operational problem first, then designing tailored control logic and integration strategies that turn ordinary systems into smart, future-ready solutions. Rising Tech Solutions positions itself as an end-to-end ELV, ICT, and security integration partner focused on customized, scalable, future-ready systems rather than one-off installations.
